1.Specifications for FSC90 Plastic Drum Extrusion Machine for Max 60L:
1).Jerrycan blow molding machine experience for more than 12 years
2).Machine produce the max for 60L jerrycan
3).The capacity is about 55pcs/h.
4).The famous imported components for machine
5).Taiwan Yuken hydraulic valve for stable working
6).The deflashing system can be equiped according to customer's request.

2.Main characteristics of FSC90 Plastic Drum Extrusion Machine for Max 60L:
1).Accumulator head, single layer, the capacity is up to 60L jerrycan, drum.
2).It process the material as HDPE, PP, ABS and etc.
3).Power supply: 380VAC, 50Hz  (depending on client's county ).
4).The machine is mainly composed of extrusion system, die head system,clamping system,hydraulic system and electrical systems:
Extrusion system:screw: specially designed based on material's trait, High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥800,brittleness≤2.Barrel: High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥900,brittleness≤2.
Die head system:Accumulator die head, single cylinder, central injection, vertical fist in first out design, accumulator channel slick; slip parts like injection piston and cylinder made with different material and technique, work balanced and reliable.
Clamping system:fixed clamping system, double diagonal tie bar single cylinder central clamping, wider space for the mould, install and dismantle the mould easily, linear roll guide rail.
Hydraulic system:adopted proportional pressure controlling, with hydraulic valve and pump of Taiwan Yuken, balanced and accurate action, prolonged useful life, sensitive response.

This machine is mainly used to produce 60L drum ,chemical drum and oil drum. Some basic parameters are as follows:
1.Screw diameter: 90mm
2.L/D ratio: 30/1
3.Max capacity: 60L
Dry cycle: 180pc/h
Clamping force: 320KN
Platen open stroke: 450-1050mm
plasten size: 900*880mm
Max platen size: 900*880mm
Oil Pump Power: 15kw
Extrusion motor: 37KW
Plasticizing capacity: 140kg/h
Heating zone: 4 zones
Extrusion heating power: 21.3kw
Power of Die heating: 21.4kw
Max die pin diameter: 350mm
Accumulator head capacity: 6.6L

3.Advantages of this FSC90 Plastic Drum Extrusion Machine for Max 60L:
1).Adopt energy-saving system which can increase the 18% efficiency.
2).The capacity is about 55pcs/h which is15% higher than some others.
3).Power consumption is about 15% lower.
4).All process are well computerized which makes the operation more conenient.
5).Imported hydraulic components which gurantee the stable working for long time.

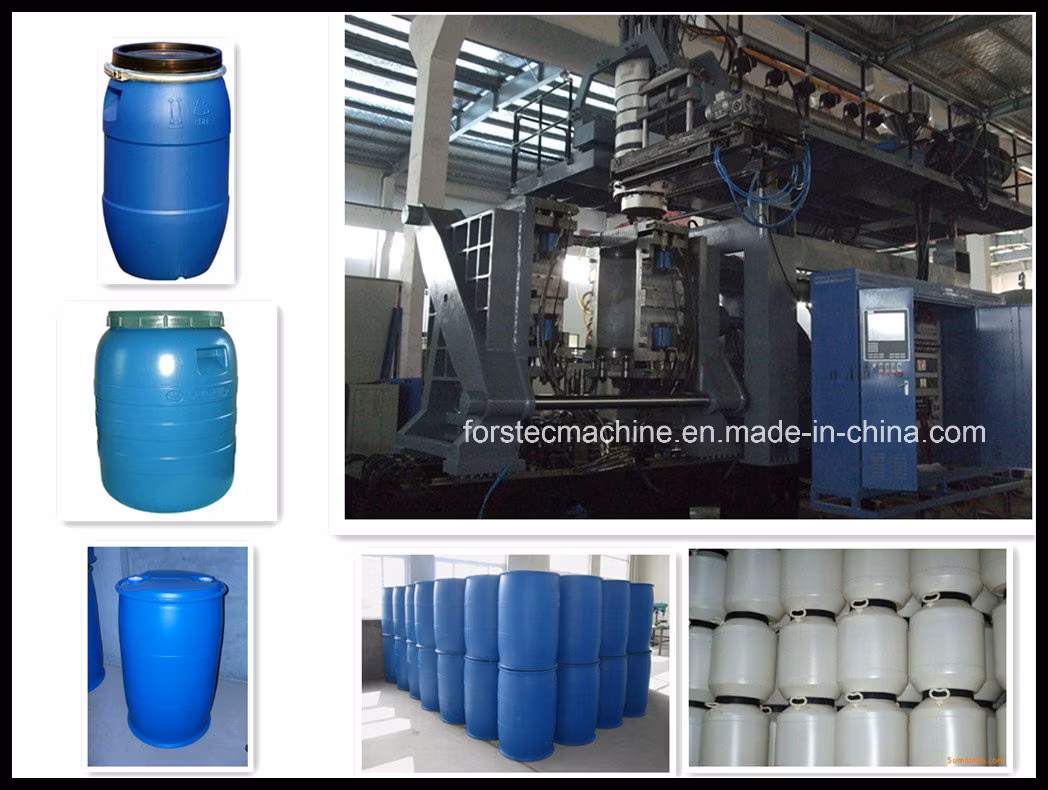

4.Products produced by this FSC90 Plastic Drum Extrusion Machine for Max 60L:


5.After-sale service:
1). Instruction for Installation and Debugging
Before delivery, FORSTEC takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
FORSTEC also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer of FORSTEC, provides the engineer with round-trip tickets, accommodation, vehicle and $55 per day salary.
2). User Training
Before delivery, FORSTEC will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3). Warranty Period
The warranty period for FORSTEC machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.

6.Main parameters for this FSC90 Plastic Drum Extrusion Machine for Max 60L:
